Aluminium Swing Gate And Gate Automation Kit Bundle
The aluminium swing gate and automation kit package contains the following:

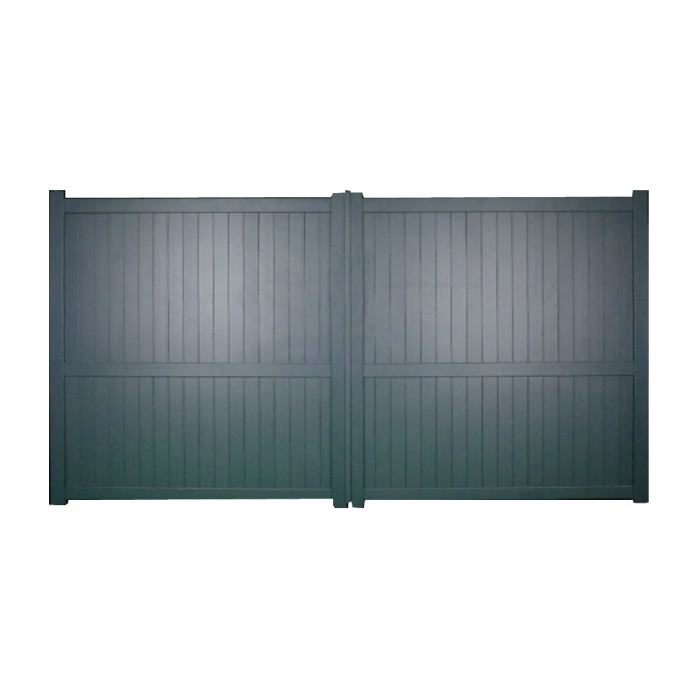

1) Pair of aluminium flat top or bell curved top, fully boarded swing gates in textured grey or Golden Oak wood effect
The flat top gates are up to 1.8m high and up to 3.8m wide per leaf and can be specified in custom sizes.
The bell curved top gates are up to 1.8m high at the hinge and up to 2m (20cm taller than at the hinge) in the centre at their highest point.
2) Your choice of gate automation kit from the following:
Nice HOPPKIT 24Vdc articulated arm kit for swing gates up to 2.4m
Life Armor 24Vdc articulated arm motor kit for swing gate leaves up to 2.3m
Nice TOONA4024KIT 24Vdc linear screw kit for swing gates up to 3m
Life OPTIMO Sky Line 230Vac linear screw kit for swing gate leaves up to 3m
Please note that these are all above ground automation systems. If you intend to keep your gates manual, please select the no automation option from the preparation for Automation options above. If you will be fitting one of our swing gate automation systems from the above list, please select the above ground automation option. If you will be using underground gate motors purchased separately, please select the underground automation option from the Preparation for Automation dropdown options.
Gate Automation Kit Options
Nice HOPP-DKIT 24Vdc articulated arm kit for swing gates up to 2.4m
- Powerful motors with 250 Nm torque
- Resistant and compact: 180 mm wide and ideal for any kind of post
- Small shockproof body with aluminium base
- Sturdy, aluminium anti-shearing arm
- No welding
- Sophisticated electronics with the built-in control unit, just 3 keys to managing all programming operations.
The Kit Contains:
- HO7124 with control unit and plug-in receiver
- HO7224 without the control unit
- OXI receiver up to 4 channels with connector
- 2 x ON2E 433.92 MHz, 2 channel transmitter
- 1 x EPMB pair of photocells with provision for connection via Nice BlueBUS.
Click here for more product information and to download product manual
Life Armor Articulated Arm Gate Motor Kit
The Armor 24Vdc kit is suitable for swing gates up to 2.3m.
- Easy to install
- No welding required
- Simplified controls
- 2 years Guarantee
The Kit Contains:
- 1 X ARO 24 UNI articulated arm gate motor equipped with encoding limit switches in opening and closing
- 1 X AR2 24P UNI DL articulated arm gate motor equipped with mechanical opening and closing stop system
- UNI24RDL control unit
- 1 pair of VISIO external photocells
- 2 X DREAM 2 button 433.92Mhz rolling code transmitter
Click here for more product information and to download product manual

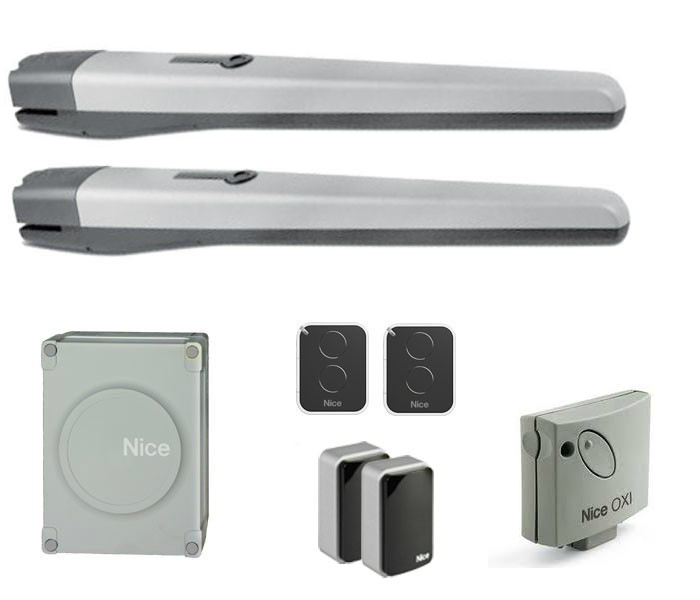

Nice TOONA4024-DKIT 24Vdc linear screw kit for swing gates up to 3m
New third-generation models: quality and durability thanks to the housing, made up of two tough aluminium shells with polyester paint finish; more resistant to atmospheric agents.
24Vdc version with a magnetic encoder. Perfect for intensive use, compatible with the control unit Moonclever MC824H, equipped with BlueBUS, and provision for operation with the systems Solemyo and Opera.
The Kit Contains:
- Nice TOONA4024-DKIT 24Vdc linear screw kit foTO4024 two irreversible electromechanical gear gate motors, 24Vdc, with magnetic encoder, mechanical stop in opening
- ON2E two transmitters 433.92 MHz, 2 channels
- MC824H control unit for two gate motors, with 24 Vdc encoder
- EPMB one couple of outdoor photocells designed for connection via Nice BlueBUS
- OXI receiver up to 4 channels with connector, without built-in transmitter.r swing gates up to 3m
Click here for more product information and to download product manual

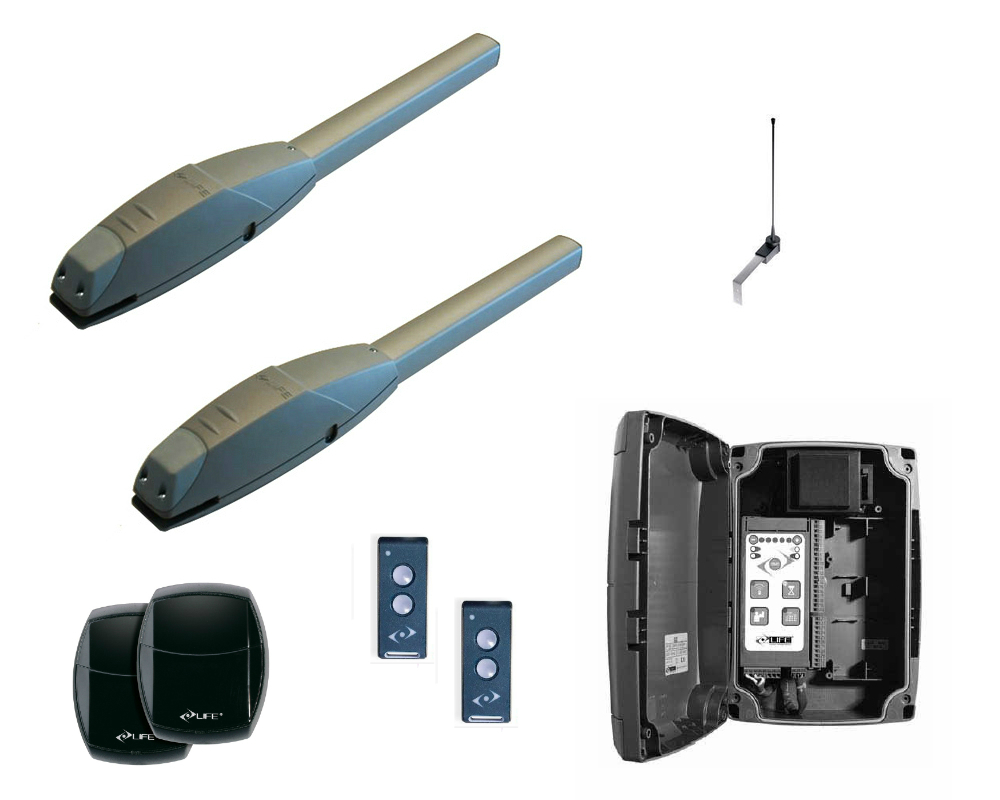

Life Skyline Linear Screw Electro-Mechanical Gate Motor Kit
The Kit Contains:
- 2 X OP3 SL SKY LINE UNI 230Vac
- 1 X GE UNI RS DL control unit with integrated receiver
- 2 X VISIO external photocells
- 2 X DREAM 2 button 433.92Mhz rolling code transmitter
- 1 X SKANT Matching antenna and coaxial cable
The Skyline linear screw motor offers the choice of slow or fast operation.
The release mechanism is protected from contamination and has been designed for quick and simple operation if required.
The motor is equipped with 1m long power and signalling cables.
It also comes with an internal cabling system which makes maintenance simple.
Bolt on brackets are included and mounting instructions are clear and simple.
Click here for more product information and to download product manual
Selecting The Size Of Your Driveway Swing Gates

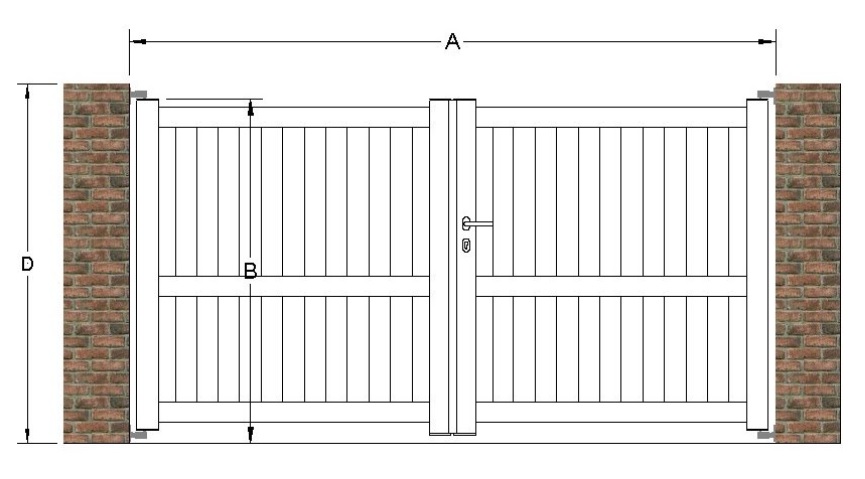

Flat top gates
Pair of aluminium, full boarded, flat top swing gates
Available in heights up to 1.8m (dimension B)
Available in widths up to 3.8m (dimension A)
Width of the gate = A = Width between pillars
Height of the gates = B = Hinge stile height from the ground
D = Pillar height from ground to underside of coping stone
PLEASE NOTE – Pillar height D must be at least 100mm more than hinge style height B
Bell curve top gates
Pair of aluminium, full boarded, bell curve top swing gates
Available in heights up to 1.8m at the hinge (dimension B) and 2.0m (20cm taller) in the middle (dimension C)
Available in widths up to 3.8m (dimension A)
Width of the gate = A = Width between pillars
Height of the gates = B = Hinge stile height from the ground
D = Pillar height from ground to underside of coping stone
PLEASE NOTE – Pillar height D must be at least 100mm more than hinge style height B
Swing Gate Installation Key Facts
Power Supply
A minimum of a 6 Amp power supply is required at the gate.
Power should be supplied at the gate as per electrical regulations.
Pillars And Posts
Pillars or posts should have a minimum height as in the illustration showing how to measure your gates.
Gate Safety
It’s the responsibility of the gate installer to carry out a risk assessment and to ensure that provision for required safety equipment is installed.
Please see our gate safety page for more information.
Effect of Wind
The swing gates supplied are close boarded. Strong winds blowing onto the face of these gates will affect the force required to open and close them. If you are installing close boarded gates in windy, exposed areas, upgrading the gate automation motors to stronger units should be considered.
